Specifications

• Display System
3LCD system

• Display Device
Size of Effective Display Area
0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of Pixels
6,912,000 (1920 x 1200 x 3) pixels

• Projection Lens
Focus
Manual

Zoom
Manual (Approx. x 1.6)

Lens shift
Manual, Vertical -35% to +55%, Horizontal: +/-15%

Throw Ratio
1.23 : 1 to 1.97 : 1

• Light Source
Laser diode

• Screen Size
40’’ to 300’’ (1.02 m to 7.62 m) (measured diagonally)

• Light Output
Mode: Standard
5,300lm / 5,800lm (Center)

Mode: Middle
4,000lm

Mode: Low

• Color Light Output
Mode: Standard
5,300lm

Mode: Middle
4,000lm

Mode: Low

• Contrast Ratio (full white / full black)
∞:1

• Displayable Scanning Frequency
Horizontal
15 kHz to 92 kHz

Vertical
24 Hz to 92 Hz

• Keystone Correction (Max.)
Horizontal
+/-30 degrees

Vertical
+/-30 degrees

• Accepted Signal Resolution
Computer Signal Input
Maximum signal resolution: 1920 x 1200

Video Signal Input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p

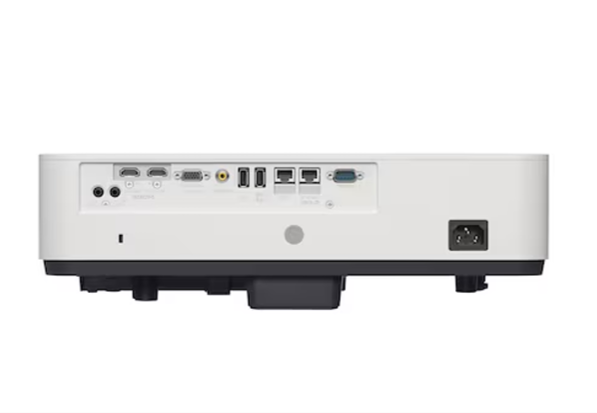

• INPUT / OUTPUT

INPUT A
RGB / Y PB PR input connector: Mini D-sub 15 pin (female)

Audio input connector
Stereo mini jack

INPUT B
HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support

Audio input connector
HDMI audio support

INPUT C
HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support

Audio input connector
HDMI audio support

INPUT D
HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)

VIDEO IN
Video input connector: Phono jack (Composite)

OUTPUT
Audio output connector: Stereo mini jack

Audio input connector
Shared with INPUT A

REMOTE
D-sub 9-pin (male) / RS232C

LAN
RJ45, 10BASE-T / 100BASE-TX

USB
TYPE-A x 1 (for F/W update), TYPE-A for Power supply

• Speaker
16 W
