Sony VPL-CXZ10 Specifications

• Display system
3 LCD system

• Display device
Size of effective display area
0.63” (16.0 mm) × 3 BrightEra LCD Panel, Aspect ratio: 4:3

Number of pixels
2,359,296 (1024 × 768 × 3) pixels

• Projection lens
Focus
Manual

Zoom – Powered/Manual
Manual

Zoom – Ratio
Approx. × 1.6

Throw ratio
1.41:1 to 2.27:1

Lens shift
N/A (Lens Offset Vertical +33%)

• Light source
Type
Laser diode

• Screen size
40″ to 300″ (1.02 m to 7.62 m)

• Light output
Mode: Standard
5,000 lm

Mode: Standard (Centre)
5,200 lm

• Color light output
Mode: Standard
5,000 lm

• Contrast ratio (full white / full black)
∞ : 1

• Speaker
16 W (monaural)

• Displayable scanning frequency
Horizontal
15 kHz to 92 kHz

Vertical
48 Hz to 92 Hz

• Accepted signal resolution
Computer signal input
Maximum signal resolution: 1920 × 1200

Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p

• Color System
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

• Keystone correction (Max.)
Horizontal
+/- 30 degrees

Vertical
+/- 30 degrees

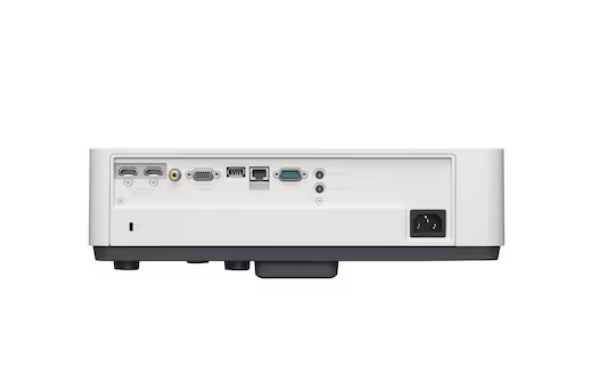

• INPUT OUTPUT (Computer/Video/Audio/Control)

INPUT A
RGB / Y PB PR input connector: Mini D-sub 15 pin (female)

Audio input connector
Stereo mini jack

INPUT B
HDMI input connector: HDMI 19-pin, HDCP support

Audio input connector
HDMI audio support

INPUT C
HDMI input connector: HDMI 19-pin, HDCP support

Audio input connector
HDMI audio support

VIDEO IN
Video input connector: Phono jack

Audio input connector
Shared with INPUT A

OUTPUT
Audio output connector: Stereo mini jack

REMOTE
D-sub 9-pin (male) / RS232C

LAN
RJ45, 10BASE-T / 100BASE-TX

USB
TYPE-A (Only for FW upgrade)
